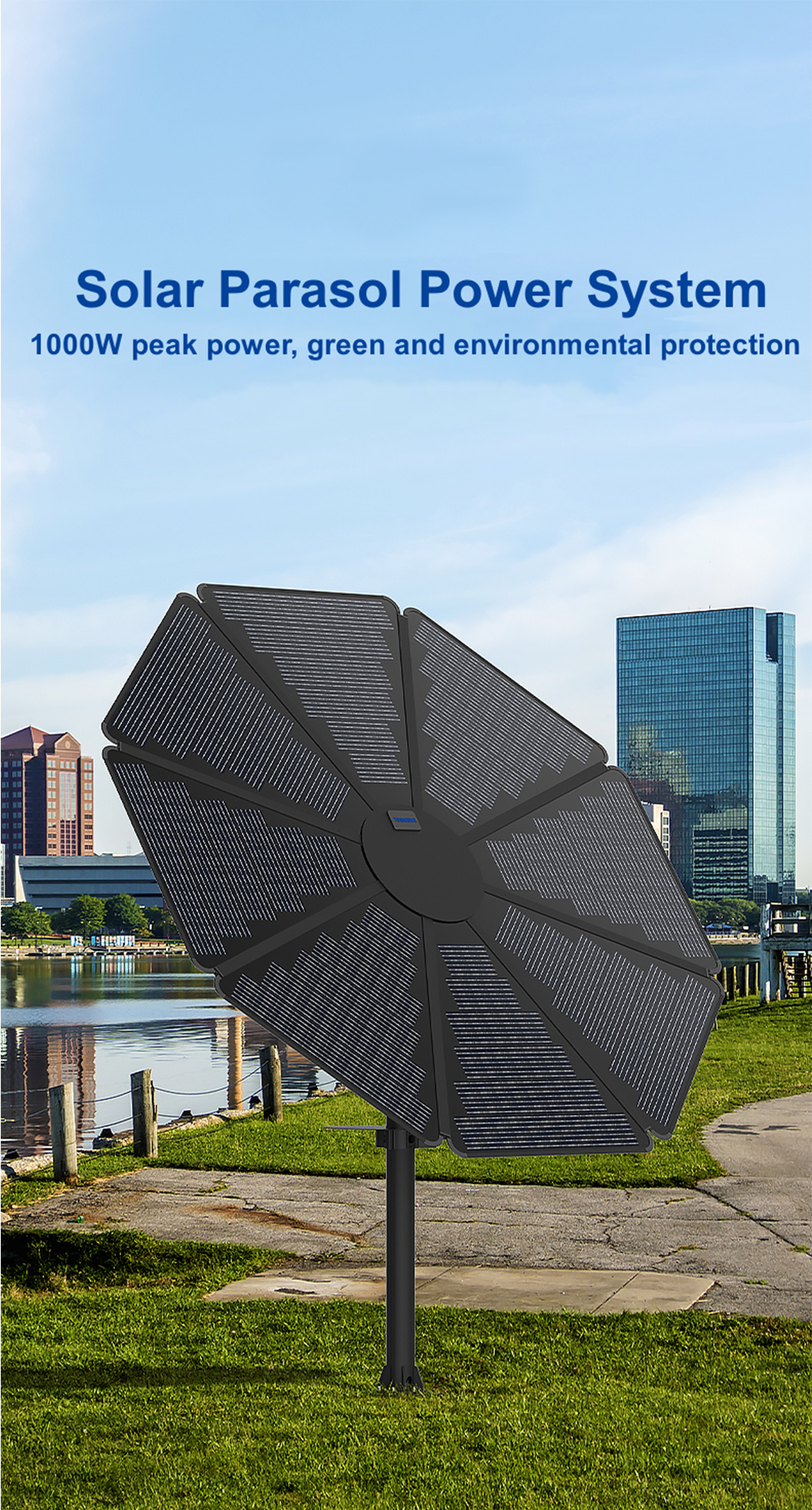

Sunflower Home Solar Storage System
You are here: Home » Solar Storage System » Off Grid Solar System » Sunflower Home Solar Storage System

loading

Sunflower Home Solar Storage System Sunflower Home Solar Storage System
Sunflower Home Solar Storage System Sunflower Home Solar Storage System

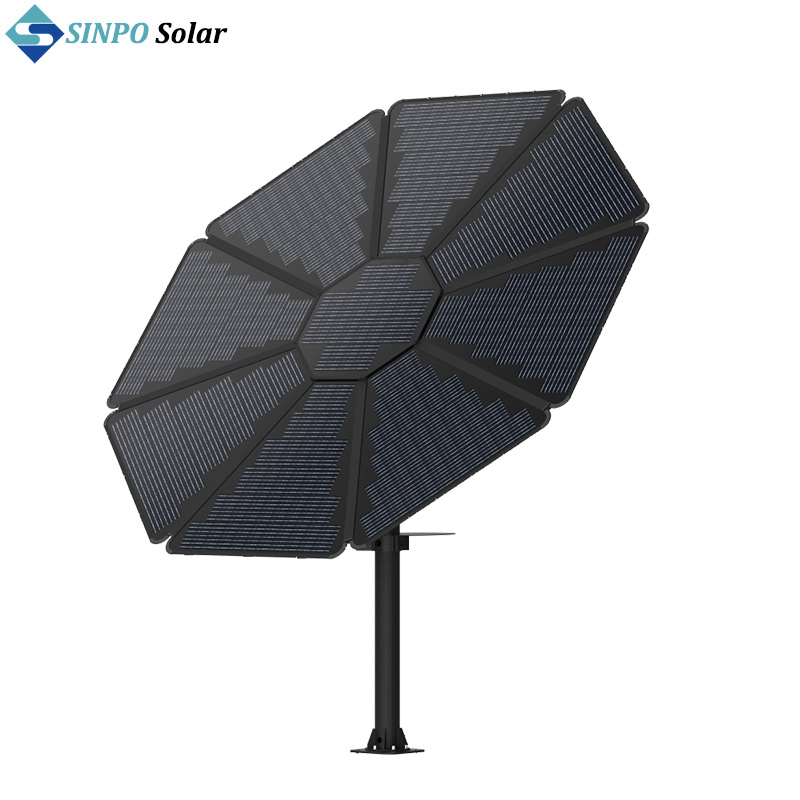

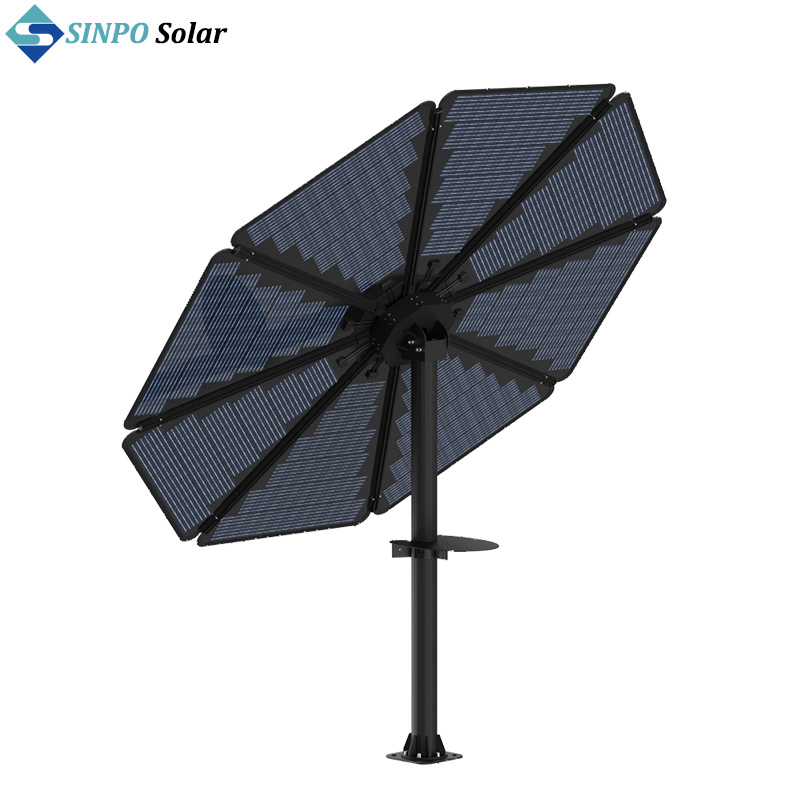

Sunflower Home Solar Storage System

Availability:
Quantity:
Inquire Add to Basket

  • Sunflower

  • SINPO

Product Description

/Features/


Support Multi-function Optional
On/Off grid can choose

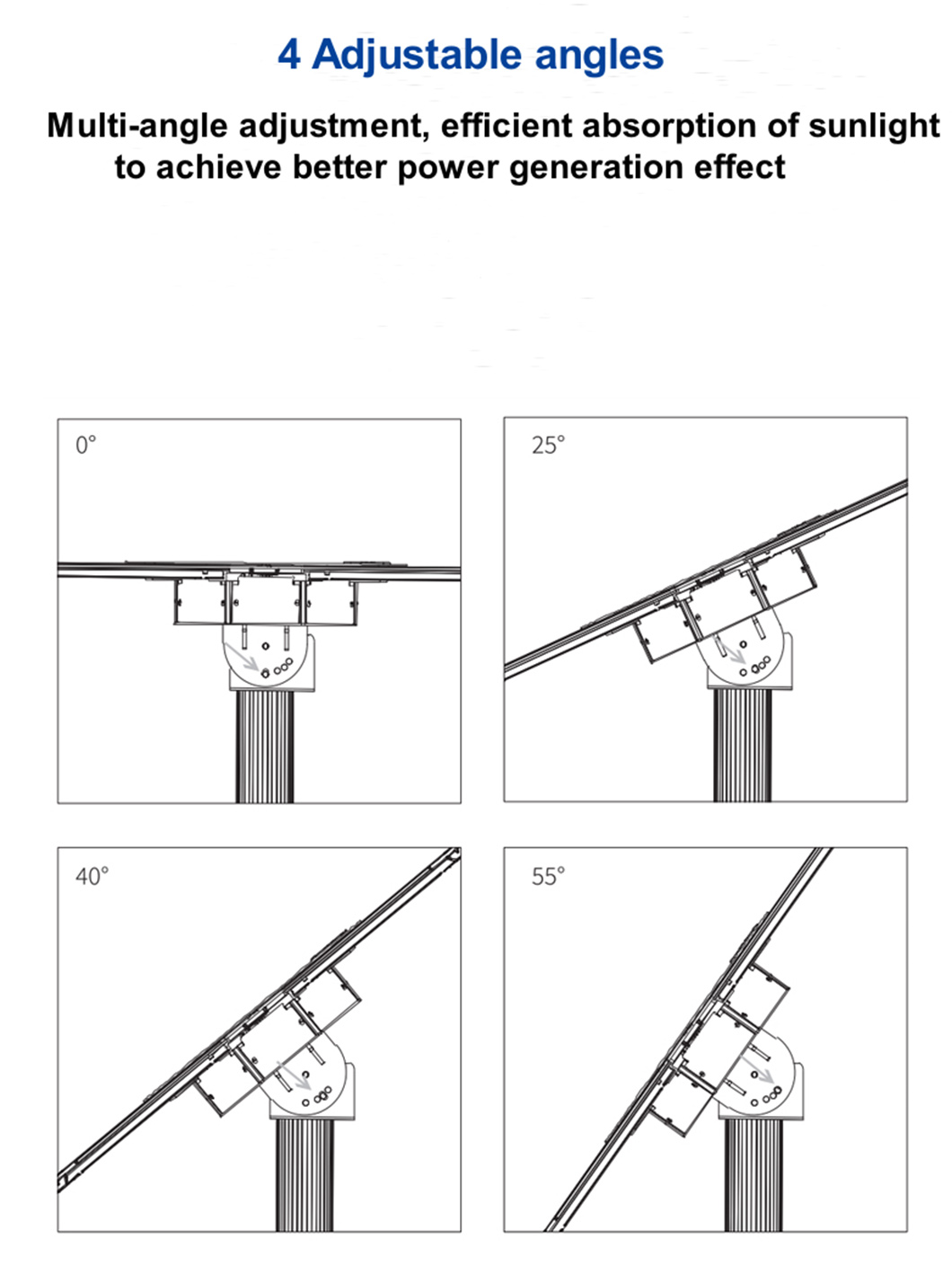

Solar panel blades angle adjustable
Module design can easy install

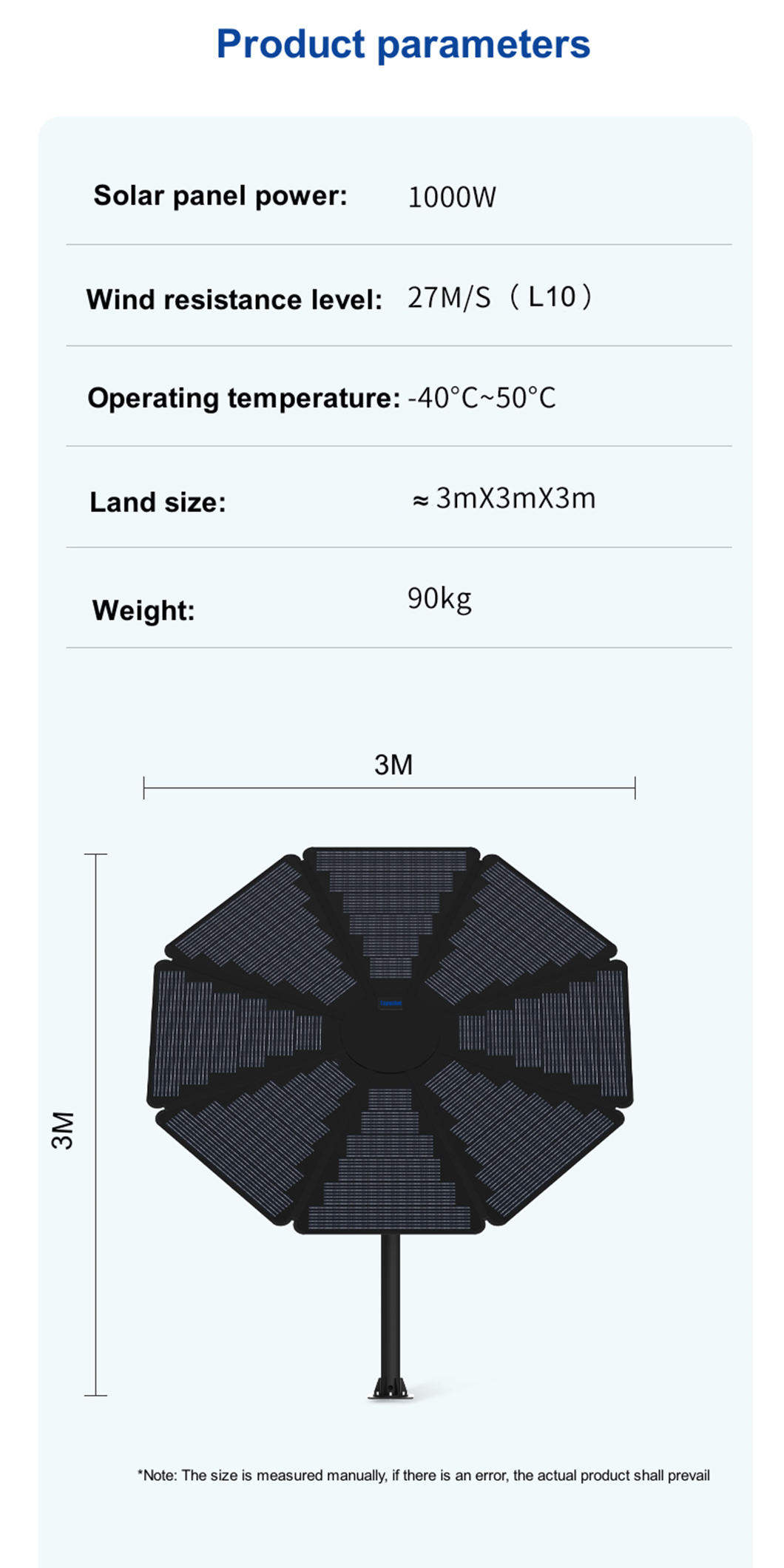

/Electrical Characteristics(Solar Panel)/

Peak Power: 1000W
Solar Panel: 8pcs
Single Panel Size: 1200*1120*7mm

Single Panel Weight: 4KG

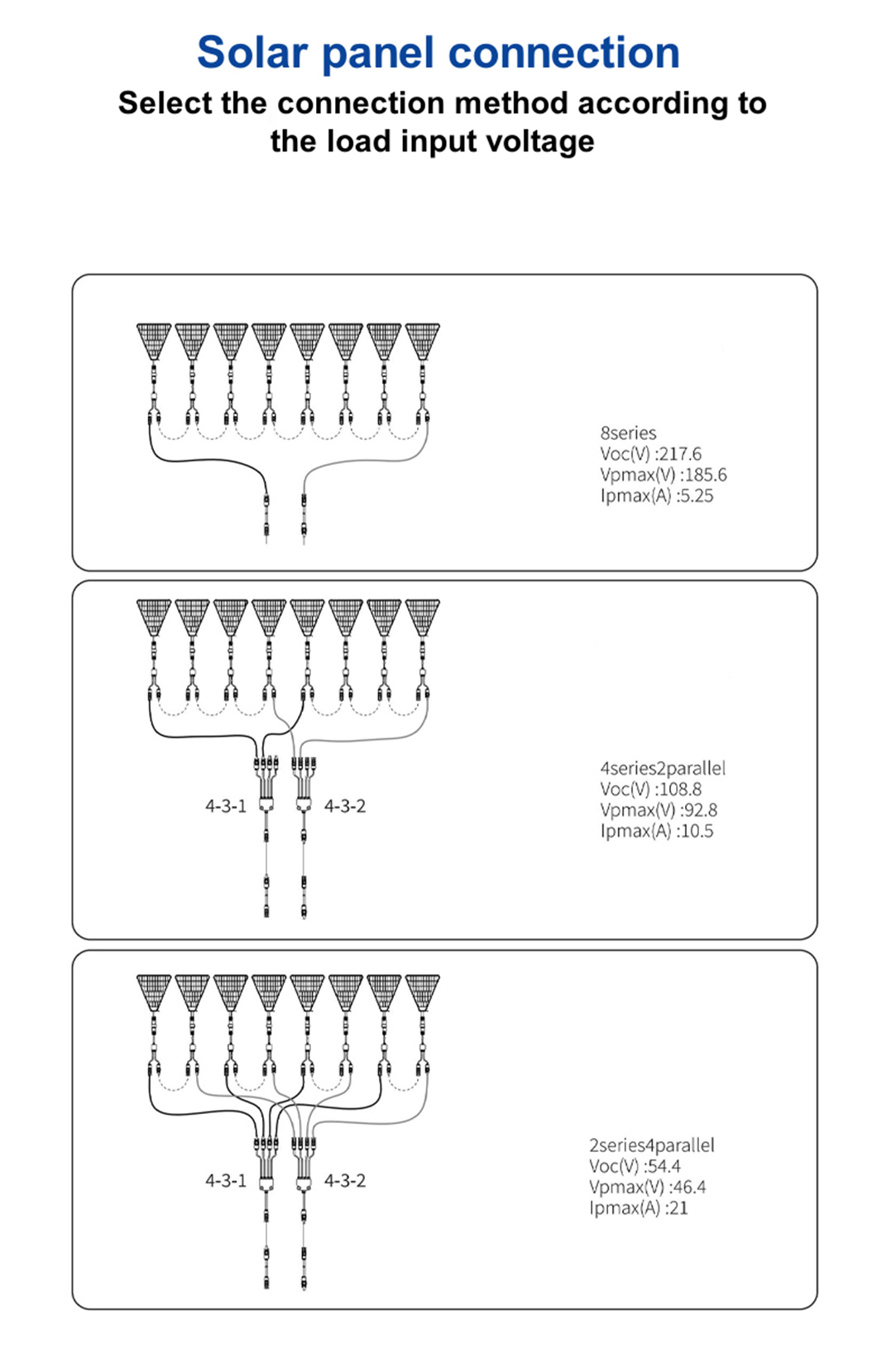

/Solar Panel Connecting/



 8 Series 4 Series 2 Parallel 2 Series 4 Parallel
Voc(V) 217.6 108.8 54.4
Vmp(V) 185.6 92.8 46.4
Imp(V) 5.25 10.5 21

1

2

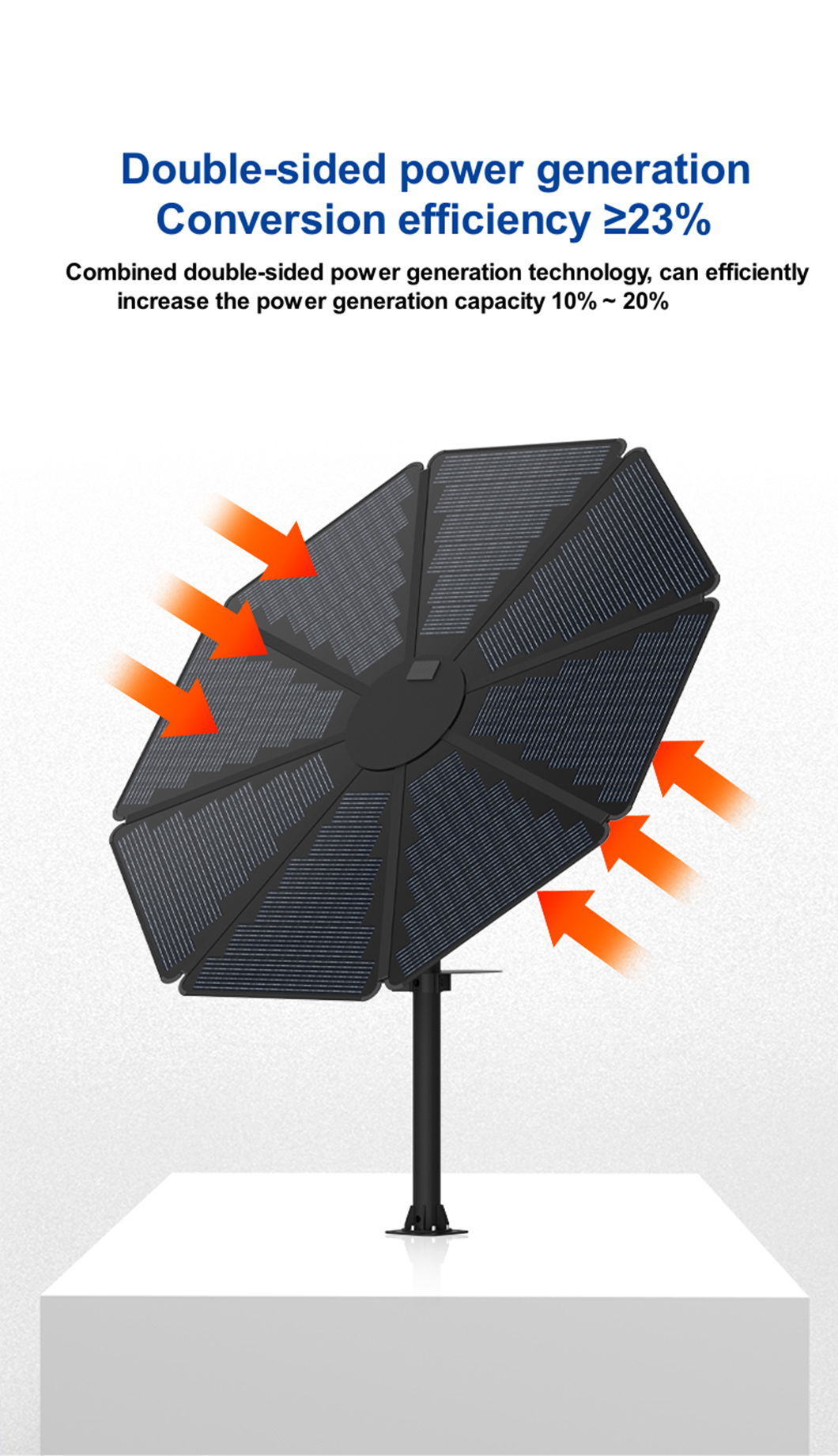

Sunflower Solar Storage System

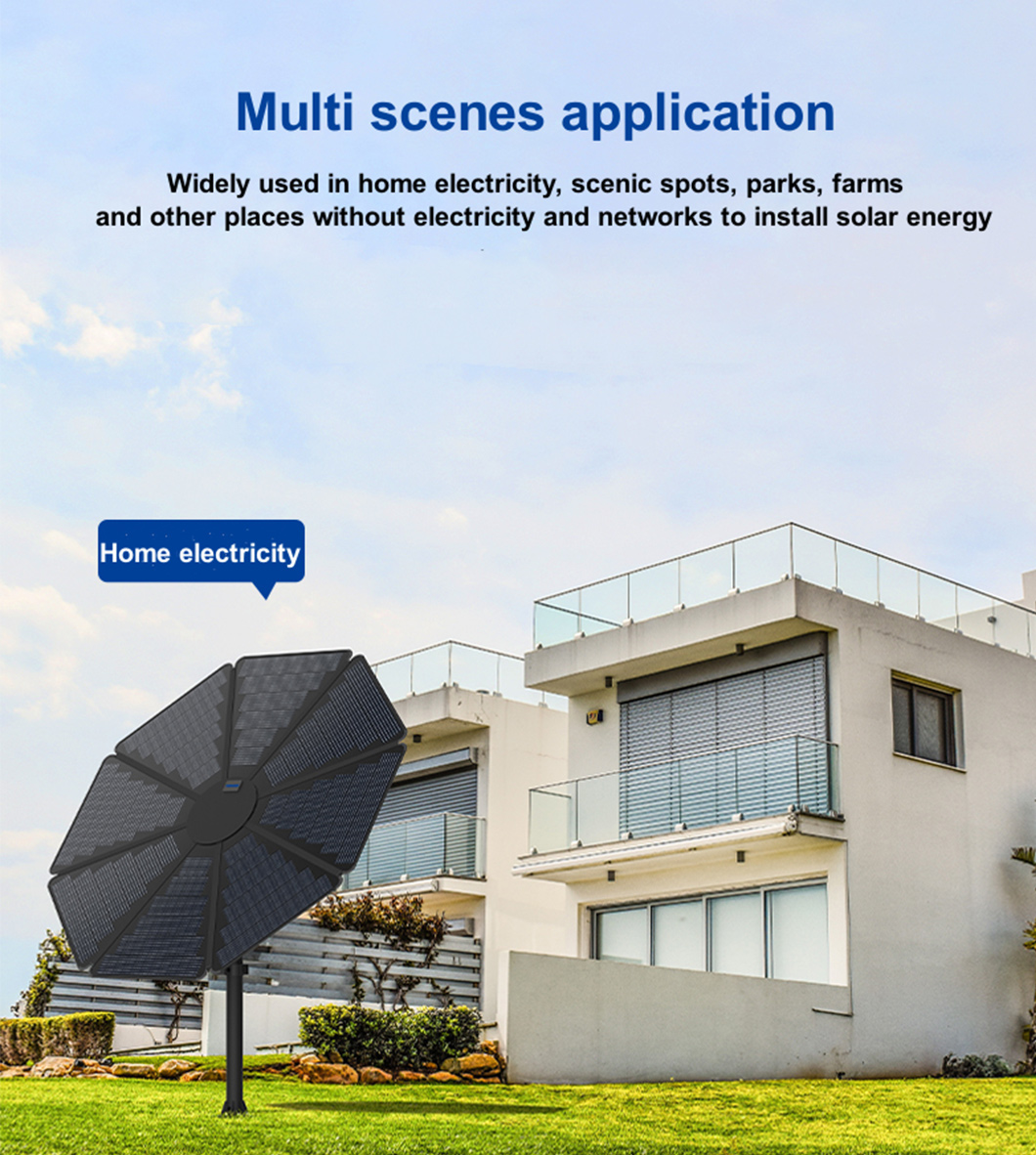

Flower-shade PV System

5

6

7

8

9

10

11

12


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
Flower-shade Solar Module System Solar Energy System Solar Power System Photovoltaic Panel System
