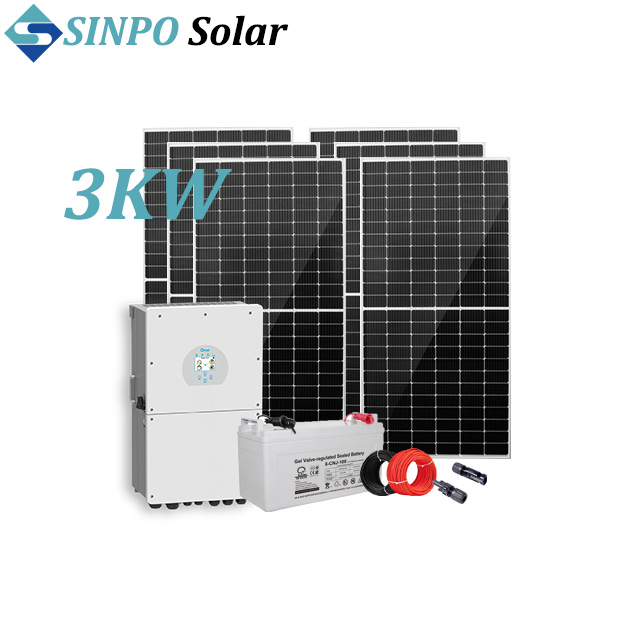

3kw Off Grid Solar Energy System for Home Storage System
You are here: Home » Solar Storage System » On Grid Solar System » 3kw Off Grid Solar Energy System for Home Storage System

loading

3kw Off Grid Solar Energy System for Home Storage System 3kw Off Grid Solar Energy System for Home Storage System
3kw Off Grid Solar Energy System for Home Storage System 3kw Off Grid Solar Energy System for Home Storage System
3kw Off Grid Solar Energy System for Home Storage System 3kw Off Grid Solar Energy System for Home Storage System

3kw Off Grid Solar Energy System for Home Storage System

Availability:
Quantity:
Product Description

3KW Solar Energy System

4


Material List

Model

SP-3KW-A

SP-3KW-B

SP-3KW-C

Remarks

Solar Panel

32V270W*4 PCS

32V270W*6 PCS

32V270W*10 PCS

Polysilicon

Storage Battery

12V100AH*4 PCS

12V150AH*4 PCS

12V250AH*4 PCS

Gel Battery

Inverter

3KW/60A

3KW/60A

3KW/60A

Power Frequency Machine/MPPT Controller

Solar Structure

√

√

√

Aluminum Alloy/Zinc Aluminum Magnesium

Battery Bracket

√

√

√

Aluminum Alloy/Zinc Aluminum Magnesium

PV Cable

√

√

√


Solar Power Generation(KW.H)

4.8

7.3

12.1

Calculated according to 4.5 hours of peak sunshine

Battery Storage Capacity(KW.H)

4.8

7.2

12


Use Time of Electrical Equipment

Electrical Equipment

Power(W)

SP-3KW-A

SP-3KW-B

SP-3KW-C

TV

100W

43.2H

64.8H

108H

Water Pump

800W

5.4H

8.1H

13.5H

Electric Fan

60W

72H

108H

180H

Washing Machine

500W

8.64H

12.96H

21.6H

Fridge

100w

43.2h

64.8H

108H

Rice Cooker

800W

5.4H

8.1H

13.5H

Induction Cooker

2500W

1.73H

2.6H

4.32H

Description

5-panel

Solar Panel SP460M-144
Monocrystalline 144 Cells 435W-460W


·Widely using of the most popular and mature type
·High power output and highest conversion efficiency of 21.16%
·Anti-reflective and anti-soiling surface reduces power loss from dirt and dust
·Outstanding Performance in low-light irradiance environments
·Excellent mechanical load resistance: Certified to withstand high wind loads(2400Pa) and Snow loads(5400Pa)
·Positive power tolerance: 0~+5W

Battery

·Lithium Battery
·Gel Battery
·The battery can be parallelly connected for extending power(KW) and energy(KWh)
6-battery
7-Hybrid Inverter Hybrid Inverter
SP-3.5/5/6k-SG03LP1-EU

·Colorful touch LCD, IP65 protection degree
·DC couple and AC couple to retrofit existing solar system
·Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
·Max. charging/discharging current of 190A
·6 time periods for battery charging/discharging
·Support storing energy from diesel generator
Structure

·Mid Clamp
·End Clamp
·Rail
·Joiner
·Fastener
·Connector
·Roof Hook
WeChat9551ecc87813a480e8f6f3086c25c9e9

Many Applications

SINPO SOLAR SYSTEM is applicable to the global grid environment. It is widely used in areas where there is no electricity and power supply is in short supply.

9-many applications

Export Map

10-export map

Certificate11-certificate

Why choose Sinpo Home Energy Storage System?

Best solution for maximizing the effciency of your home's renewable energy use.

For consumers, the biggest concern regarding energy is the increase in energy costs, for example, electricity bills. By adopting renewable energy generation equipment to reduce electricity use, they may be able to reduce their costs to some degree. To obtain the best possible result, however, they need a plan to maximize the self-consumption ratio of the generated power. To do so, it is important to adopt an effective energy storage system(ESS).

Sinpo ESS ensures ease of product installtion and use
We have focused considerable R&D efforts on ESS in order to provide a world-class system. Our DC-cou-pled product based on 3-level topology helps save ESS installation costs and features compact design for a straightforward monitoring function, as well as auto operation mode for improved convenience.

Feel assured with your choice of Sinpo, the trusted company
Sinpo ESS is a complete solution with Sinpo-made parts from the battery to the PCS, providing one solution with one warranty. We offers a true one-stop solution from the incubation phase, through consulting, to design, with safety assured by certifying bodies in Europe and other parts of the word.
