5kw, 10kw, 15kw Solar Roof Mounting System Ballasted Flat Roof Solar PV Energy Mounting Brackets Structure 5kw, 10kw, 15kw Solar Roof Mounting System Ballasted Flat Roof Solar PV Energy Mounting Brackets Structure

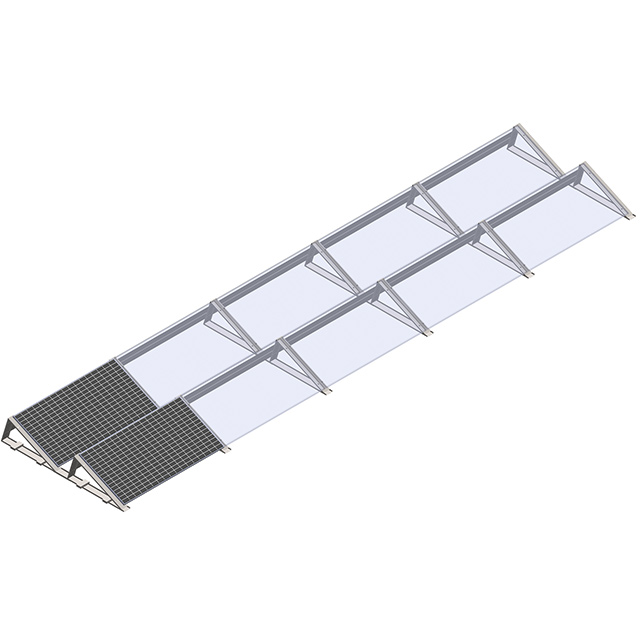

5kw, 10kw, 15kw Solar Roof Mounting System Ballasted Flat Roof Solar PV Energy Mounting Brackets Structure

Availability:
Quantity:
Product Description

/Product Description/

1.Enables easy,fast and cost-effective installation.
2. Flexible post spacing withstands different wind&snow loads.
3. High quality material in Aluminum and SUS 304.
4. Highly corrosion resistant surface treatment.
5. Screws and nuts go with every componts needed.
6. Fasteners and rail nut fully configured to save extra parts purchasing.
7. Mechanical calculation and reliability tested to ensure highset product quality.
8. 12-25 years system and structural guarantee.


Type:

Solar mounting system for flat concrete roof

Installation site:

According to your requirements

Material:

Aluminum6000series ;

Fasten material:

Aluminum

Survival Wind Speed:

< 60m/s

Design Snow load:

Up to 1.4KN/ Square meters

Solar panel type:

Framed or Frameless

Panel Orientation:

Transverse or vertical

Design Standard:

CE;IOS9001;SGS

Quality warranty:

12-25 years

Duration:

More than 20 years

Delivery time:

7-15 days

Package:

Standard Packing

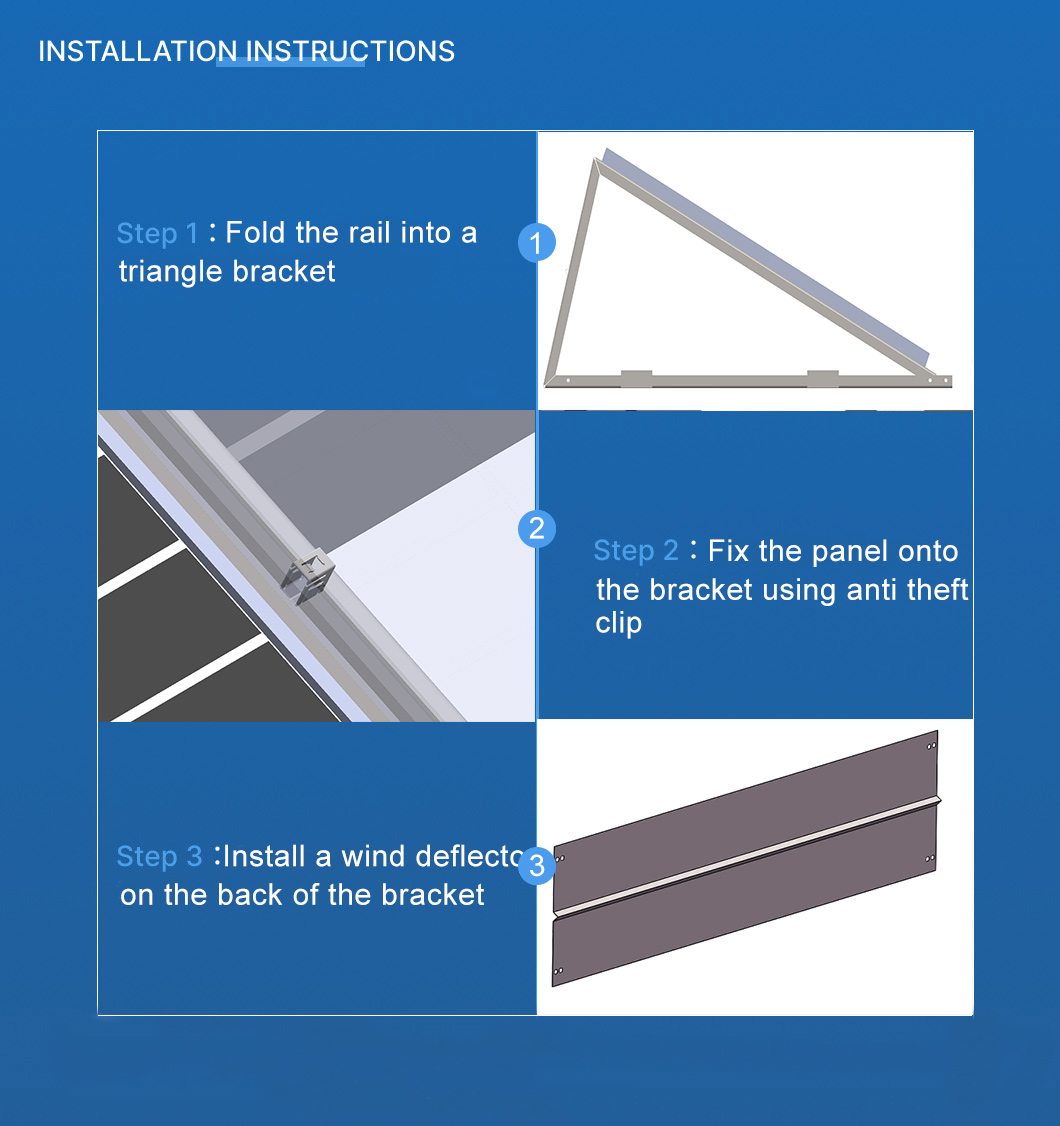

/5 Panels Materials List/


NO.

Name

QTY

Material

1

Triangle Bracket

3

Q235

2

Anti-theft Clamp

3

Q235

3

Wind Deflector

3

Q235

4

Hexagon Socket Bolt

4

Q235

5

Self-tapping Screw

6

Q235

1.473.4.5.

6.7.8.9.10
